Baffles are two unglamorous pieces of concrete or plastic inside the tank, and they are the reason the tank works at all. When the outlet baffle fails, nothing changes in the house — and the drain field starts dying.
Baffles direct flow so wastewater settles instead of short-circuiting straight through the tank. Replacement costs $300–$900 and takes under an hour. A failed outlet baffle produces no symptoms indoors while sending scum and solids to the drain field, which is why it is found at inspection rather than reported by homeowners, and why it is the single most valuable thing an inspection catches on an older tank.
What baffles do

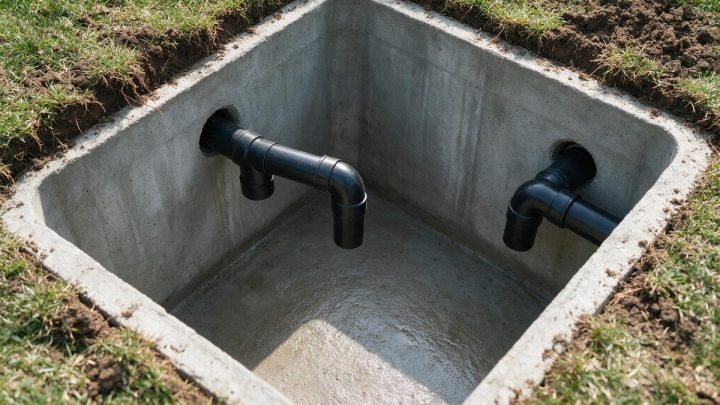

A septic tank has two, and they do different jobs.
The inlet baffle directs incoming wastewater downward, below the scum layer. Without it, water arriving from the house would drive straight across the surface toward the outlet, stirring the settled layers and pushing solids out. It also stops the scum layer backing up into the house line.
The outlet baffle (the important one) draws water from the middle of the tank, below the floating scum and above the settled sludge. That middle zone is the clarified liquid the drain field is designed to receive. Remove the outlet baffle and the tank draws from the surface instead, sending grease and floating solids directly into the field.
This is the failure that produces no warning at all. Drains keep draining. Nothing smells. Nothing gurgles. The only thing that changes is that grease and solids are now travelling to the drain field on every cycle: the exact mechanism that seals the soil and ends a field’s life. Homeowners routinely go years in this state, and discover it when the field fails.
Why they fail
- Corrosion. The gas space above the liquid in a septic tank is the aggressive part. Hydrogen sulphide converts to sulphuric acid on damp concrete surfaces, and it eats concrete baffles from the top down over decades.
- Age. Concrete baffles typically last 20–40 years, less in a tank that is rarely pumped, since long intervals concentrate the corrosive conditions.
- Physical damage during pumping, if a hose is handled carelessly.
- Original construction. Some older tanks used sanitary tees that were never securely fixed, and they simply fall off eventually.

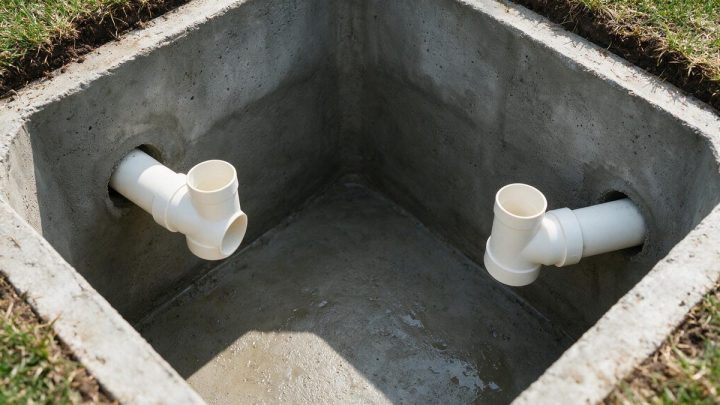

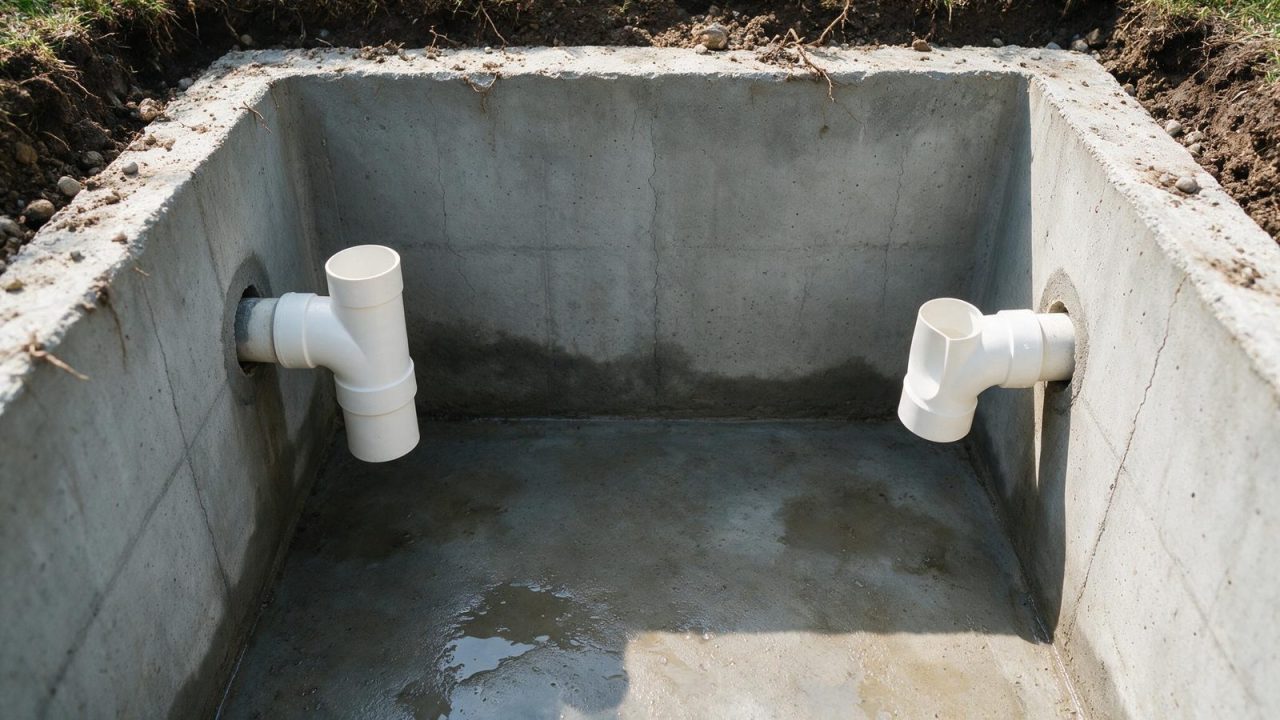

Modern replacements are almost always PVC sanitary tees, which do not corrode and last essentially indefinitely. It is one of the rare cases where the replacement part is unambiguously better than the original.
Symptoms: mostly, there are none
| Failure | What you notice | What is happening |
|---|---|---|
| Outlet baffle missing | Nothing | Scum and solids flowing to the drain field |
| Inlet baffle missing | Occasionally odour, or gurgling | Incoming flow disturbing settled layers |
| Baffle partly collapsed | Nothing, or slow drains | Partial restriction, partial short-circuit |
| Debris from a failed baffle in the outlet | All drains slow | Physical blockage at the outlet |
Because the important failure is silent, it is found one way only: by someone looking inside an empty tank. This is the strongest argument for taking the inspection add-on at every pump-out: it costs $50–$150 and it is the only moment the baffles are visible.
What it costs
| Work | Typical cost | Notes |
|---|---|---|
| Outlet baffle replacement (PVC tee) | $300 – $600 | Most common job |
| Inlet baffle replacement | $300 – $600 | Similar work |
| Both baffles at once | $500 – $900 | Cheaper together |
| Baffle plus effluent filter fitted | $400 – $900 | Sensible combination |
| Pump-out required first | $300 – $550 | Tank must be empty |
| Excavation to reach the lid | $100 – $300 | Avoidable with risers |
| Concrete repair to the baffle wall | $500 – $1,500 | Where the housing has degraded |
Almost every quote assumes the tank is empty, so a pump-out is either included or scheduled alongside. If you are due for pumping anyway, doing both in one visit saves the second callout.
If a baffle is being replaced, fit an effluent filter at the same time. The tank is open, the technician is at the outlet, and the incremental cost is small. A filter catches the fine solids the baffle cannot, and together they are the two cheapest things protecting the drain field. Why the filter matters.
What to ask for
- PVC sanitary tees, not concrete. No corrosion, effectively permanent, usually cheaper to fit.
- Correct depth. The outlet tee must extend to the right level below the liquid surface: too shallow and it draws scum, too deep and it draws sludge. This is the detail that distinguishes a proper job.
- Condition of the concrete around the housing. If the surrounding concrete has degraded badly, a new tee needs something sound to fix to.
- Photographs of before and after. Standard practice for a good contractor, and it goes in the folder for your next sale.
- The filter, while they are there.
When a baffle failure means more than a baffle
Two findings alongside a failed baffle change the conversation:
Widespread concrete degradation. If the tank walls above the waterline are visibly eroded (aggregate exposed, rebar showing), the baffle is a symptom rather than the problem. That is a tank nearing the end of its structural life, at $3,000–$7,000 to replace. See component lifespans.
A long history of the baffle being absent. If the outlet baffle has been missing for years, the drain field has been receiving scum for years. The baffle repair stops further damage but does not undo what has happened. Ask the inspector to load-test the field while they are on site — it is the only way to find out what condition it is actually in. How fields fail.
Prevention
- Pump on schedule. Long intervals concentrate the corrosive gas conditions that destroy concrete baffles. Find your interval.
- Inspect at every pump-out. $50–$150 to catch a silent failure.
- Fit risers so inspection is trivially easy and therefore actually happens.
- Ask for baffle condition in writing on every service invoice. It builds a record, and a record is what makes the next problem obvious.
How much does it cost to replace a septic tank baffle?
$300 to $600 for one, or $500 to $900 for both, assuming the tank is empty and accessible. A pump-out at $300–$550 is required first if one is not already scheduled.
What happens if a septic baffle is broken?
If the outlet baffle fails, the tank draws liquid from the surface instead of the middle, sending grease and floating solids to the drain field. There are no indoor symptoms. The damage accumulates in the field, which is the expensive component.
How do I know if my baffle is broken?
You almost certainly will not, from inside the house. It is found by inspecting the tank while it is empty, which is why the inspection add-on at each pump-out is worth taking. A missing outlet baffle is the most common serious finding on any tank over twenty years old.
Are baffles required?
Yes. Onsite system codes require both inlet and outlet baffles or their equivalent, because without them a tank does not perform its settling function. A tank with a missing baffle is generally a failing item on a transfer inspection.
Can I replace a baffle myself?
No. It requires an open tank, and the gases inside cause loss of consciousness within seconds — people are killed doing exactly this every year. It is also a job with a specification that matters: a tee set at the wrong depth is worse than useless. It is under an hour of professional work.
Sources
- US Environmental Protection Agency: Onsite Wastewater Treatment Systems Manual, septic tank inlet and outlet devices.
- University of Minnesota Onsite Sewage Treatment Program: septic tank inspection and baffle condition.
- Penn State Extension: septic tank components and maintenance.
- National Institute for Occupational Safety and Health: confined space hazards in septic tanks.
- Licensed contractor quotes across multiple states, reviewed August 2026. Method: How We Research Costs.
