A drain field is sized in square feet of trench, and the answer depends on two inputs: bedrooms and how fast your soil drains. Under Nebraska’s rules, a three-bedroom house needs between 495 and 1,050 square feet, depending only on the soil. Other states use their own tables, but the logic is the same.
- 495 to 1,050 sq ft of trench for a 3-bedroom house in Nebraska’s table, set by soil alone
- 630 sq ft for that same house in mid-range soil (11 to 20 minutes per inch)
- About 210 sq ft more for each added bedroom in that same soil
- Your county’s table decides, and the health department can tell you which one applies
How big is a septic drain field for a typical house?
For a three-bedroom house in Nebraska, the required trench area runs from 495 square feet in fast sandy soil to 1,050 square feet in slow clay. A middle-of-the-road soil lands at 630 to 750 square feet. For scale, 1,000 square feet is a rectangle about 25 feet by 40 feet, though real fields are built as separate trenches, so the ground you set aside is larger than the trench area itself.
Those numbers come from the Nebraska Department of Environmental Quality rules as reproduced by the University of Nebraska-Lincoln. They are one state’s table, not a national standard. We use it because it is published in full, and because it shows how the pieces fit together.
The two inputs that set drain field size
Regulators do not size a field to the tank. They size it to the water the house can send it, then adjust for how well the soil takes that water.
Bedrooms stand in for water use
Design flow is estimated from bedroom count, not from how many people live in the house today. In the Nebraska table a one-bedroom home is designed for 200 gallons a day, and each added bedroom adds 100 gallons, up to 1,000 gallons a day at nine bedrooms. Our guide to septic tank sizing explains why bedrooms, not square footage, drive the whole system.
Soil sets the multiplier
Soil is measured with a percolation test, which records how many minutes water takes to drop one inch. Sandy soil might take 3 minutes per inch. Clay might take 48. Slow soil absorbs less per square foot, so it needs more trench. If you are still at the stage of getting the test done, see what a perc test costs and what happens if soil fails.
Drain field size table by bedrooms and percolation rate
| Percolation rate (min per inch) | 2 bedrooms | 3 bedrooms | 4 bedrooms | 5 bedrooms |
|---|---|---|---|---|
| 5 to 10 | 330 | 495 | 660 | 825 |
| 11 to 20 | 420 | 630 | 840 | 1,050 |
| 21 to 30 | 500 | 750 | 1,000 | 1,250 |
| 31 to 40 | 550 | 825 | 1,100 | 1,375 |
| 41 to 50 | 660 | 990 | 1,320 | 1,650 |
| 51 to 60 | 700 | 1,050 | 1,400 | 1,750 |
| Over 60 | Professional engineer design and a construction permit required | |||
The full published table runs from one to nine bedrooms. Read across a row and you see the bedroom effect. Read down a column and you see the soil effect. For a three-bedroom house, going from the fastest soil band to the slowest more than doubles the field, from 495 to 1,050 square feet.
These figures are Nebraska’s. Your state or county may use a different table, a different design flow or a different soil test. Treat the numbers as a way to understand the shape of the calculation, not as your requirement.
What one more bedroom adds to the drain field
Adding a bedroom raises the design flow by 100 gallons a day, and the field grows with it. In this table the increase is the same as the one-bedroom column, because each row scales linearly.
| Percolation rate (min per inch) | Added per bedroom (sq ft) |
|---|---|
| 5 to 10 | 165 |
| 11 to 20 | 210 |
| 21 to 30 | 250 |
| 31 to 40 | 275 |
| 41 to 50 | 330 |
| 51 to 60 | 350 |
That is why a finished basement or an attic conversion with a new bedroom can matter to a septic permit. A three-bedroom house in 11-to-20 soil needs 630 square feet. Call it a four-bedroom house and the requirement becomes 840, a third more. If the existing field was built at the old minimum, it may no longer meet the rule.

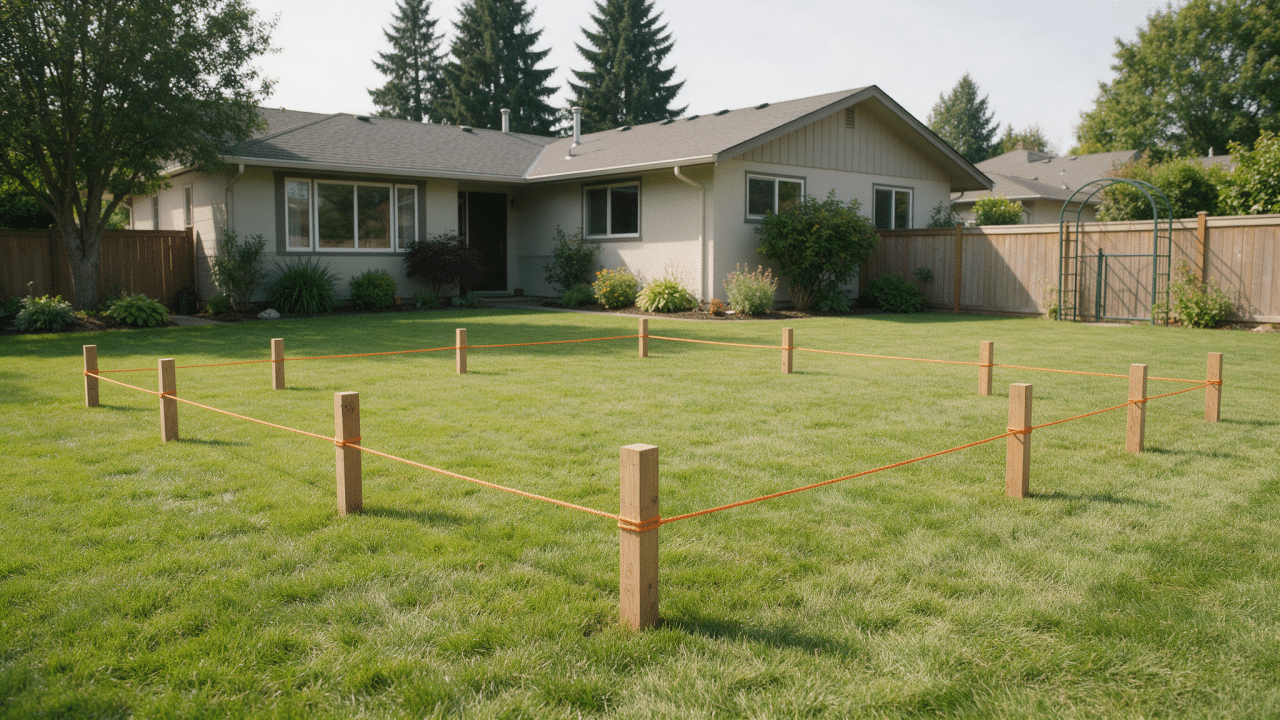

What a drain field looks like on the ground
Trench area is only part of the footprint. A conventional field is built as several parallel trenches. North Carolina State’s SERA-17 septic resource describes a typical layout as three to five trenches, 18 to 24 inches deep and up to 100 feet long, each holding a perforated pipe in 12 to 18 inches of gravel under about 12 inches of soil.
The EPA describes this gravel-and-stone design as one that has existed for decades, and says it has a relatively large footprint that may not suit every residential site. Lot size is often the real constraint. The trenches also need separation from wells, buildings and property lines, and those distances are set locally. Small lots run into them first. If you are planning a small home, our piece on septic options for a tiny house, cabin or ADU covers why a small house rarely gets a small system.
Why your drain field may need to be bigger than the table
The published band is a floor, not a promise. Three things push a real design above it.
- A soil test that comes in slower than the neighbors’ lot, which moves you down the table.
- A jurisdiction that requires extra design margin or a reserve area for a future replacement field. Ask your health department whether yours does.
- A soil profile with gray colors or mottling, which NC State’s guidance treats as a sign of standing water in the wet season and a reason to reject or redesign a site.
Above 60 minutes per inch, Nebraska’s table stops giving a number and requires an engineer. Many places have a similar cutoff, and it is the point where a conventional field stops being the default answer.
How to find your own drain field size
Skip the calculators. The number that counts is the one on your permit. Your county health or environmental department usually keeps the record, often with a site plan showing the field’s dimensions. The permit shows the bedroom count the system was designed for and the soil rating used. You do not need to dig or probe to get it, and you should not open the tank. Our guide on septic tank size for a 3-bedroom house covers the tank side of the same design.
Drain field size is bedrooms times soil. A three-bedroom house needs roughly 500 to 1,050 square feet in Nebraska’s table, and the soil test does most of the swinging. Get the permit record for your own property before relying on any table, including this one.
How big is a leach field for a 3-bedroom house?
In Nebraska’s table, 495 to 1,050 square feet of trench, depending on soil, with 630 square feet for mid-range soil. Other states publish different tables, so your county’s number governs.
How big is a drain field for a 1,000-gallon septic tank?
The tank does not set the field size. The field is sized from the design flow, which comes from bedroom count, and from the soil’s percolation rate. A 1,000-gallon tank can sit in front of a field of very different sizes.
How deep is a septic drain field?
NC State’s SERA-17 describes typical trenches as 18 to 24 inches deep, with the pipe in 12 to 18 inches of gravel under about 12 inches of soil. Local codes set the actual depths.
Does adding a bedroom make the drain field too small?
It can. Each added bedroom raises the design flow, and in Nebraska’s table that adds 165 to 350 square feet depending on soil. Check the permit for the bedroom count the field was designed for before you add one.
What if my lot is too small for the required drain field?
The county decides. Some allow a different design, some require an engineer, and some decline the lot. Ask the local health department before you commit to a property or a plan.
Sources
- University of Nebraska-Lincoln Water, Drainfield Size and Design, reproducing NDEQ Title 124 sizing table
- North Carolina State University, SERA-17, Septic Drain Field Design and Maintenance, 2023
- US EPA, Types of Septic Systems
