Most homeowners discover what kind of septic system they own at the worst possible moment: when it needs replacing. The differences matter, because they set the running cost, the maintenance obligation, and what happens when the field eventually fails.
Conventional gravity is what most American homes have: tank, distribution box, gravel trenches, no moving parts. Everything else exists because a site cannot support that. Soil that drains poorly, a high water table, shallow bedrock or a small lot each push you up the ladder (chamber, pressure-dosed, sand filter, mound, aerobic), and each rung adds cost, complexity and usually a mandatory service contract.
The seven types at a glance
| Type | Installed | Annual running | Moving parts | Used when |
|---|---|---|---|---|
| Conventional gravity | $10,000 – $25,000 | $120 – $200 | None | Good soil, adequate depth |
| Chamber | $11,000 – $26,000 | $120 – $200 | None | Same soil, smaller footprint |
| Pressure-dosed | $13,000 – $28,000 | $200 – $350 | Pump | Uneven ground, better distribution |
| Sand filter | $15,000 – $28,000 | $250 – $450 | Pump | Marginal soil, extra treatment |
| Mound | $15,000 – $30,000+ | $250 – $450 | Pump | High water table, bedrock, clay |
| Aerobic (ATU) | $12,000 – $30,000 | $400 – $900 | Aerator, pump | Small lots, poor soil, tight setbacks |
| Nitrogen-reducing | $18,000 – $40,000 | $500 – $1,200 | Several | Nitrogen-sensitive watersheds |
Read the annual column as carefully as the installed one. Over a twenty-five year life, the gap between a conventional system at $150 a year and an aerobic unit at $700 a year is roughly $14,000, comparable to the entire installed cost of the conventional system.
Conventional gravity

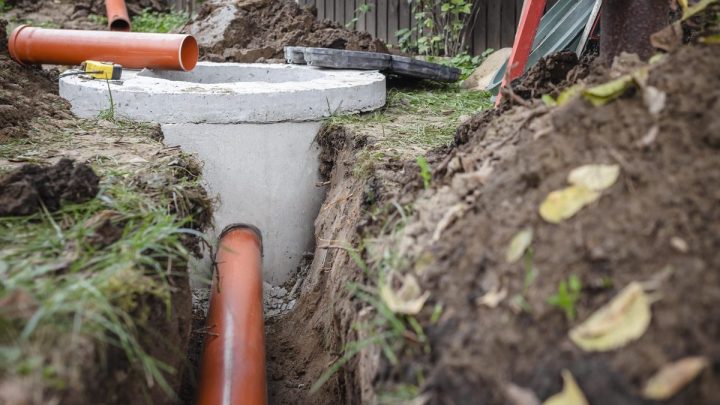

Wastewater flows by gravity into a tank, solids settle, the clarified middle layer flows out to a distribution box and into perforated pipe laid in gravel trenches. Soil does the treatment.
Why it dominates: nothing moves, nothing consumes electricity, nothing needs a service contract. It fails only when the soil stops accepting effluent, and that takes 25–30 years with reasonable care. If your site supports one, take it.
Requires: percolation within an acceptable band, two to four feet of unsaturated soil beneath the field, room for several hundred square feet of trenching, and enough fall for gravity flow.
Chamber systems

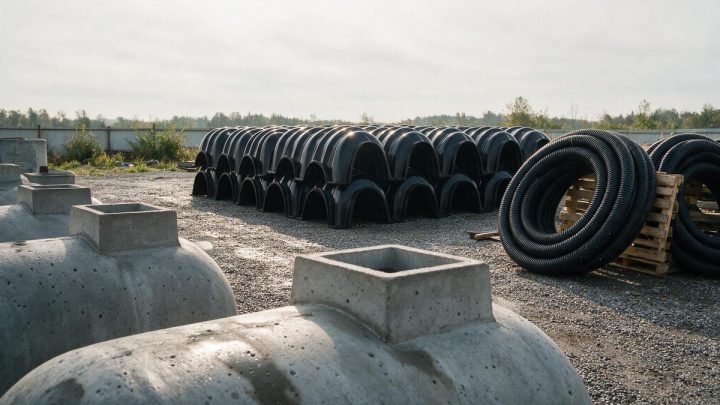

The same principle with plastic arch chambers replacing gravel. Faster to install, no gravel haulage, and codes often allow a smaller footprint for the same flow.
Realistically a variation on conventional rather than a different category — same soil requirements, same failure mode, same maintenance.
Pressure-dosed systems
A pump delivers effluent to the field in timed doses through small-diameter pressurised pipe, rather than letting it dribble by gravity. Distribution is far more even, which uses the whole field instead of overloading the first trench.
Better performance and often better field longevity, at the cost of a pump every 10–15 years, an alarm to respond to, and electricity.
Sand filters
Effluent is dosed onto a bed of sand, treated as it passes through, then distributed to a smaller drain field. The extra treatment stage means the soil has less work to do, and many codes recognise that with a reduced required area.
Used where the soil is marginal but not hopeless. Recirculating variants achieve better treatment still.
Mound systems
Where the native soil cannot be used at all (water table too high, bedrock too shallow, clay too dense), the field is built above grade in imported sand. A pump lifts effluent up into it.
Effective, and visible: a raised bed of several hundred square feet in the garden. Expensive to build and expensive to repair, since work means dismantling the mound. Full cost breakdown.
Aerobic treatment units
An ATU injects air into the wastewater, supporting aerobic bacteria that break down waste far more thoroughly than the anaerobic process in a conventional tank. The effluent is clean enough that a much smaller field is permitted, sometimes a quarter of conventional area.
The trade: an aerator running continuously, an alarm, and in nearly every jurisdiction a mandatory annual service contract as a condition of the permit. Running costs of $400–$900 a year are normal and they are not optional. The detail.
Nitrogen-reducing systems
The fastest-growing category, and the reason is regulatory rather than technical. Conventional systems remove very little nitrogen, and nitrogen reaching coastal waters and drinking water aquifers is now the primary driver of new septic rules across the United States.
These systems add a denitrification stage. They cost $18,000–$40,000 installed and $500–$1,200 a year to run, and a growing number of coastal and watershed counties now require them on replacement or at sale. Many of those counties also run substantial grant programmes — worth asking about before assuming the full cost. What is being mandated and where.
Any of these designs can also need a pump at the house end when the tank sits uphill of the plumbing. That setup is a grinder pump system, and it brings its own maintenance and power-cut risk.
you have
- The county permit record. Free, definitive, includes system type, capacity, install date and the as-built drawing. Always start here.
- Is there an alarm panel? A box on an outside wall or in a utility room with a light and a buzzer means a pump: pressure-dosed, mound, aerobic or a pump chamber. Gravity systems have no alarm.
- Is there a raised area in the garden? A rectangular mound of several hundred square feet, often grassed, is exactly what it looks like.
- Is there a service contract? Aerobic and advanced units almost always carry one. If you are paying an annual fee, you have one.
- Does anything hum? An aerator runs continuously and is audible near the unit.
- Ask at the next pump-out. The technician will identify it immediately.
Buying a house? System type is one of the first things to establish, because it sets the running cost you are inheriting and the replacement cost you are exposed to. A conventional system on good soil and an aerobic unit on a small coastal lot are very different financial propositions at the same asking price. See the buyer’s checklist.
What decides which one you can have
| Site condition | Typical requirement |
|---|---|
| Good soil, deep water table, room | Conventional or chamber |
| Good soil, uneven ground | Pressure-dosed |
| Marginal soil | Sand filter, or ATU |
| High water table or shallow bedrock | Mound |
| Heavy clay | Mound, or ATU with a small field |
| Small lot, tight setbacks | ATU |
| Nitrogen-sensitive watershed | Nitrogen-reducing system |
| Nothing works | Holding tank, if permitted at all |
The perc test and soil evaluation is what places you in this table, and it is why it comes before any quote.
What is the most common type of septic system?
The conventional gravity system (tank, distribution box and gravel drain field) accounts for the large majority of residential onsite systems in the United States. Everything else exists because a particular site could not support one.
Which septic system is cheapest to run?
Conventional gravity, at roughly $120–$200 a year, because there is nothing to power and nothing to service beyond pumping. Aerobic and nitrogen-reducing systems run $400–$1,200 a year with mandatory service contracts and continuous electricity.
Can I replace an aerobic system with a conventional one?
Only if the site would support a conventional system, which is usually the reason the aerobic unit was installed in the first place. Where soil or lot constraints drove the original decision, they have not changed. Ask the county health department. It is their call.
Do all septic systems have a drain field?
Nearly all. The exception is a holding tank, which stores wastewater for scheduled removal and treats nothing. Holding tanks are permitted only as a last resort in most counties, and the running cost is severe: several hundred dollars per pump-out, several times a year, indefinitely.
Which type lasts the longest?
Conventional gravity, because it has nothing to break. The soil eventually stops accepting effluent at 25–30 years, but there is no pump, no aerator and no control panel to fail before then. Systems with mechanical components need those replaced several times across the same period.
Sources
- US Environmental Protection Agency: Onsite Wastewater Treatment Systems Manual, treatment technology selection.
- US EPA: Stopping Nitrogen at the Source with Advanced Septic Systems.
- University of Minnesota Onsite Sewage Treatment Program: system types and performance.
- NSF/ANSI Standard 40 and 245: residential wastewater treatment unit certification.
- Contractor quotes across multiple states and system types, reviewed August 2026. Method: How We Research Costs.
